Gallery
Projects Undertaken
SITE: ASSMANG MANGANESE – CATO RIDGE

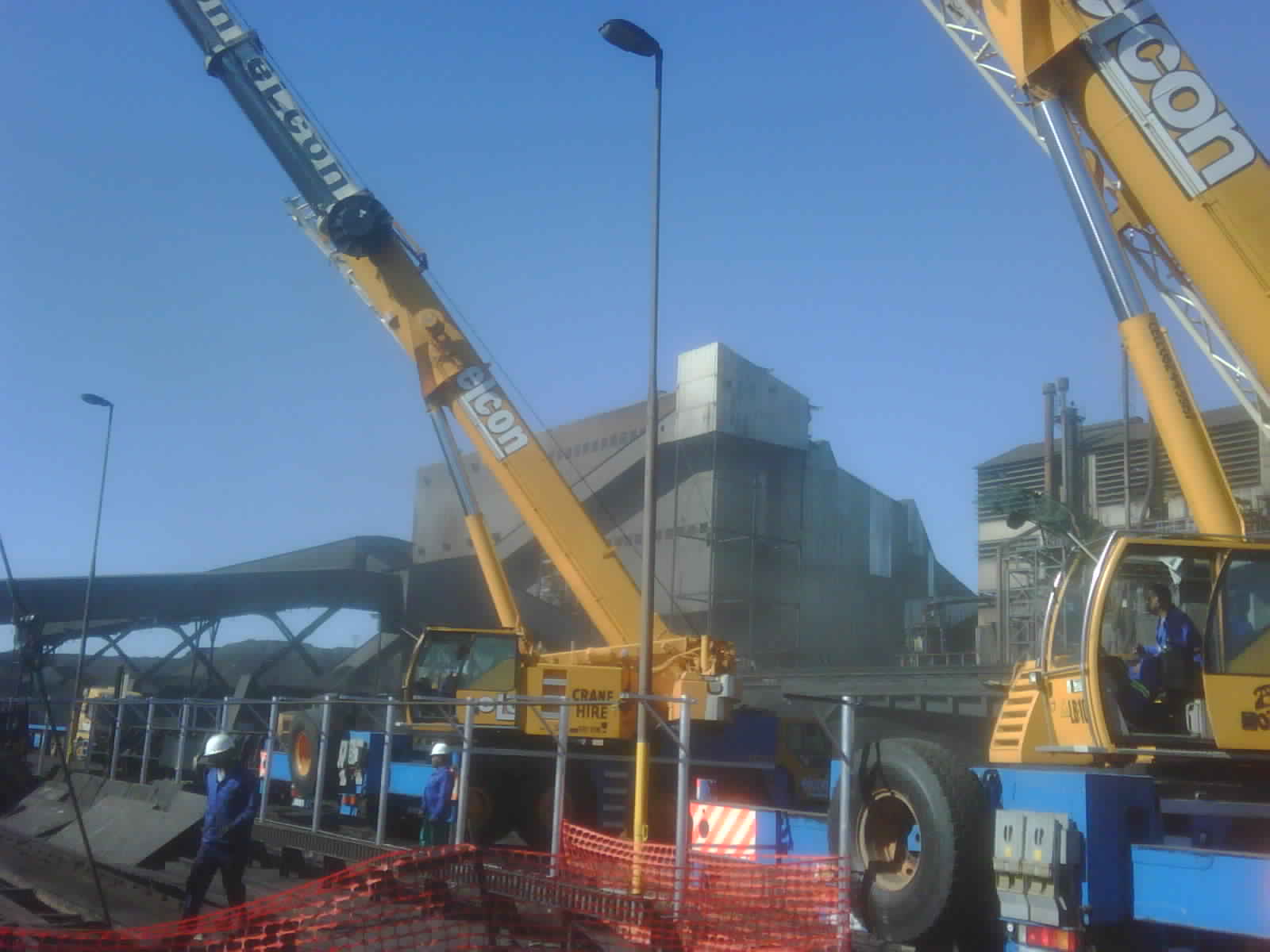

REFURBISHMENT OF TIPPLER NO 2 – 2011
This Project Included Removing of Tippler No 2, Sandblasting, Painting, Structural Repairs & Renewing Pins and Bushes. Manufacturing & Installing of New Feed Chutes. Re-Installing Tippler.
Projects Undertaken
SITE: TONGAAT HULETT SUGAR – MAIDSTONE MILL

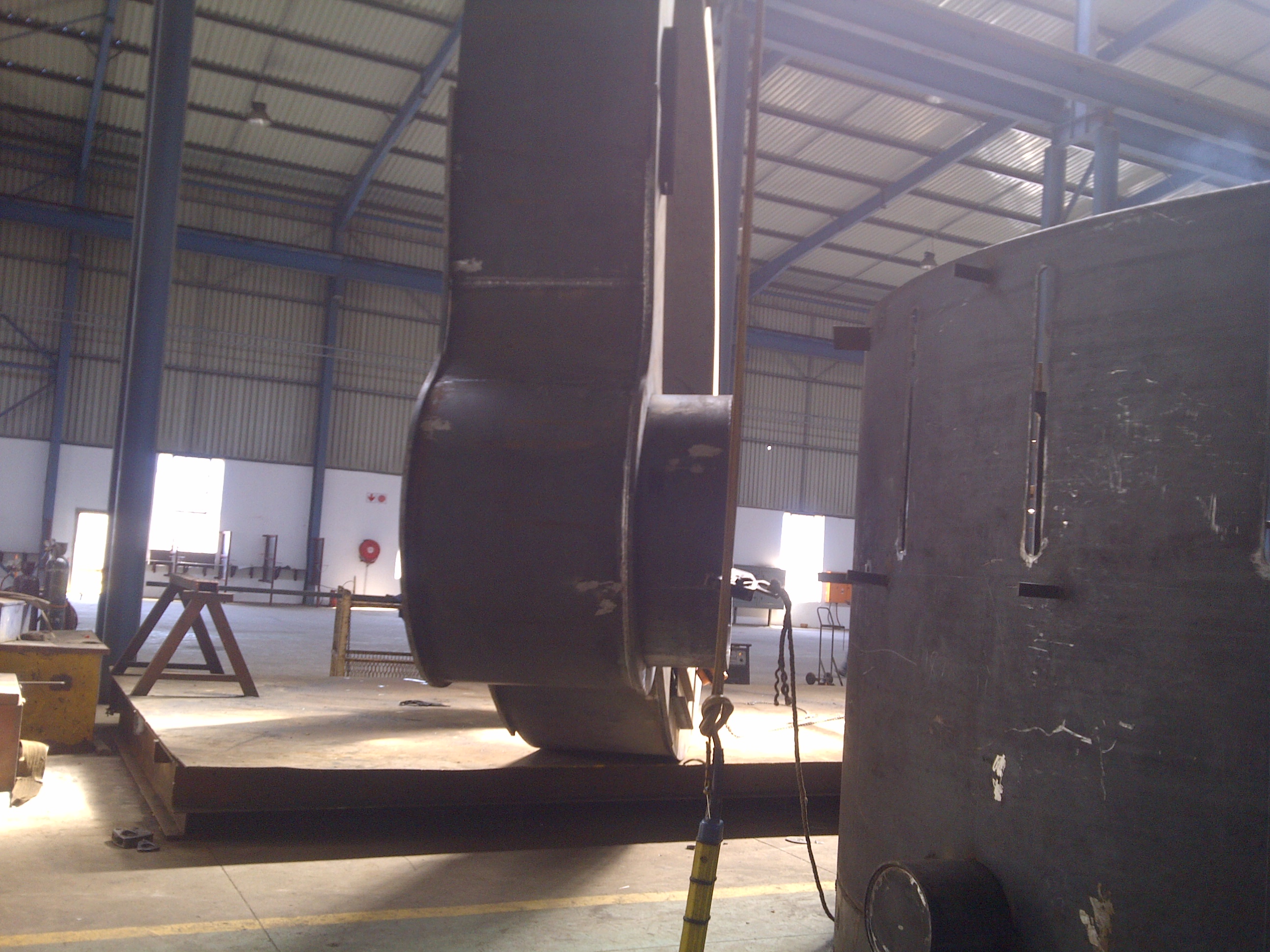

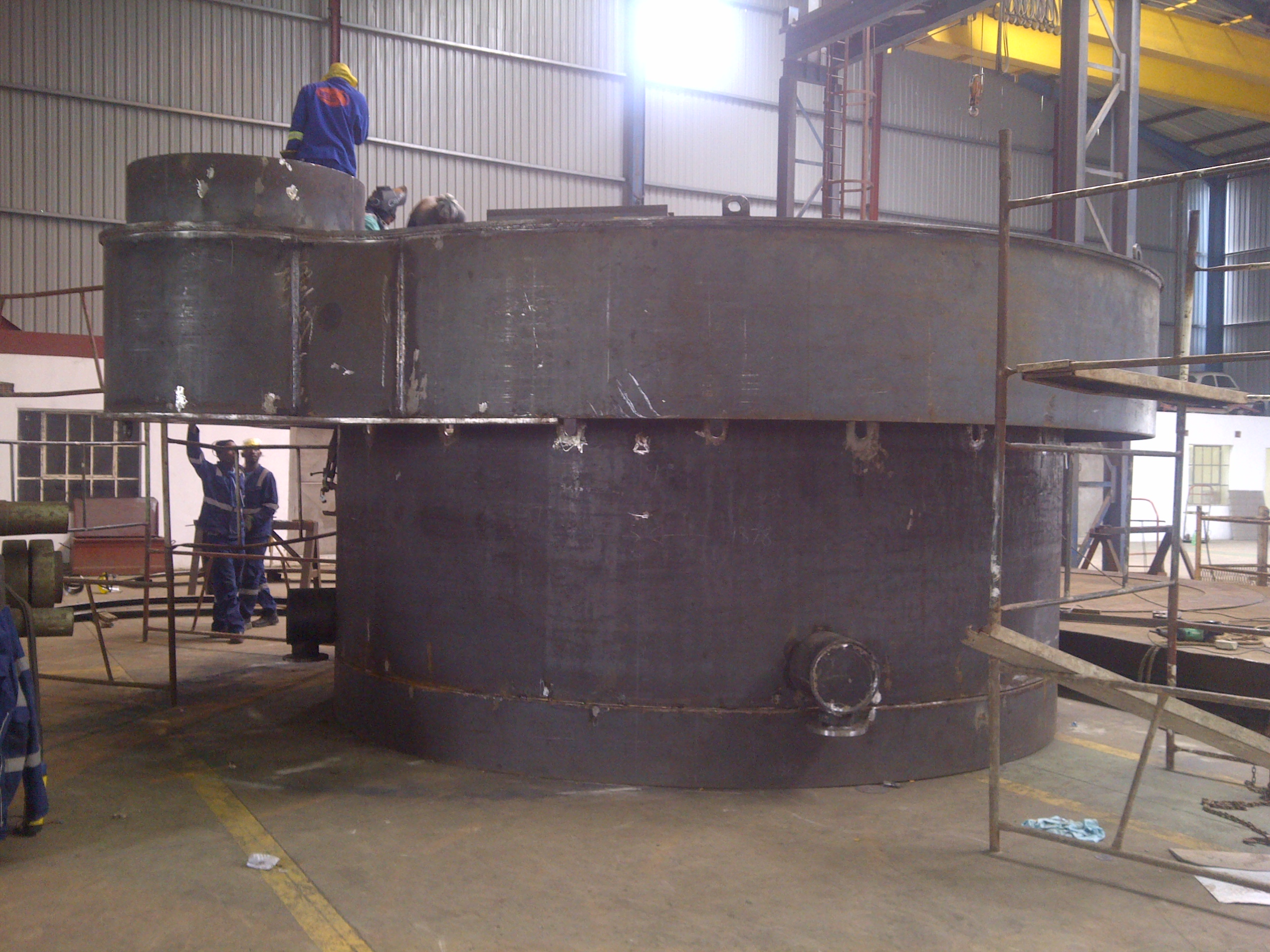

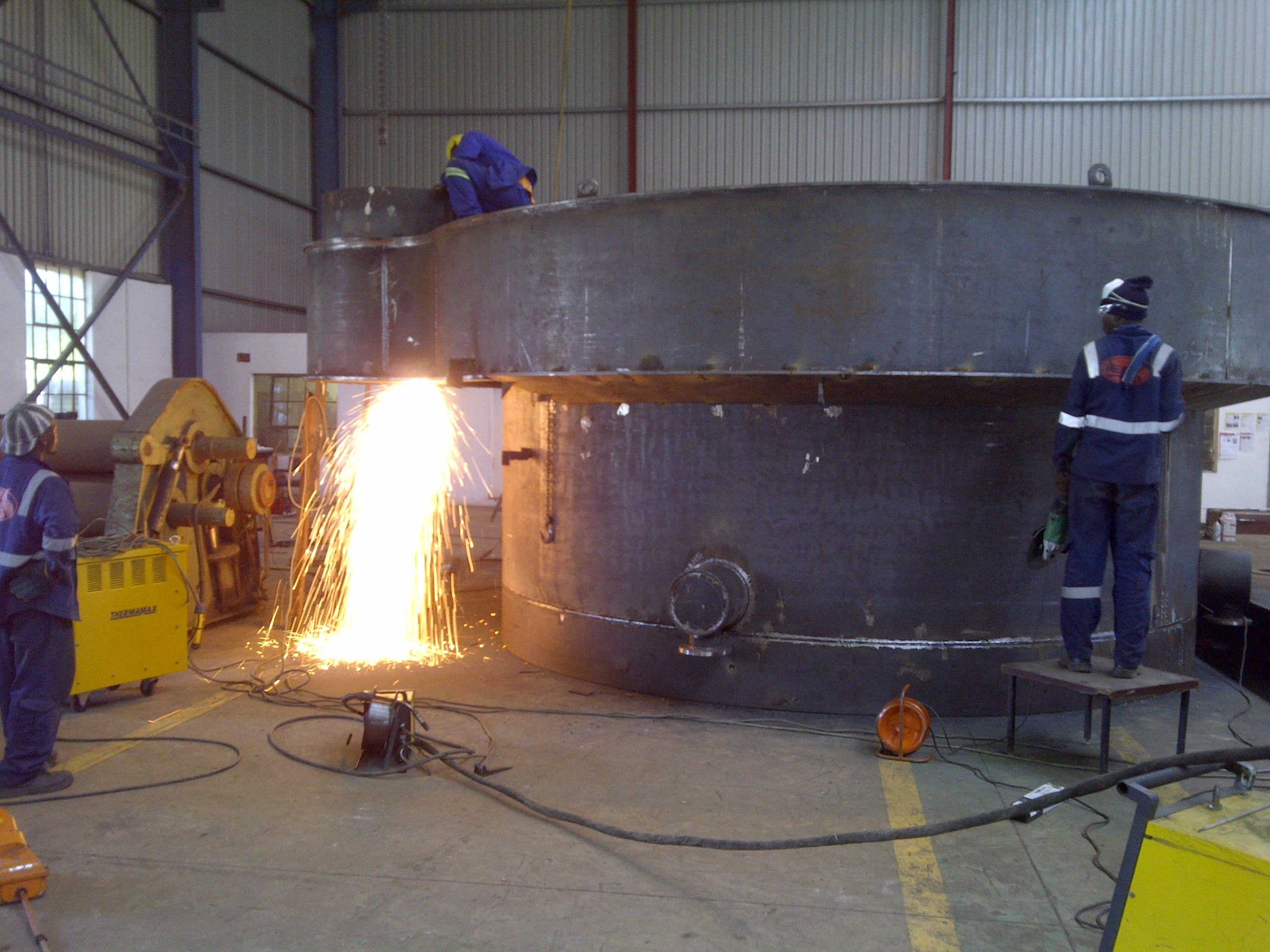

TONGAAT 2 EVAPORATOR CALANDRIA REPLACEMENT – 2013
This project included stripping, manufacturing and installing Calandria, Downtake Pipe & Tube Plate. Done in position due to restricted crane access utilising temporary ring beam supports
Projects Undertaken
SITE: ASSMANG MANGANESE – CATO RIDGE

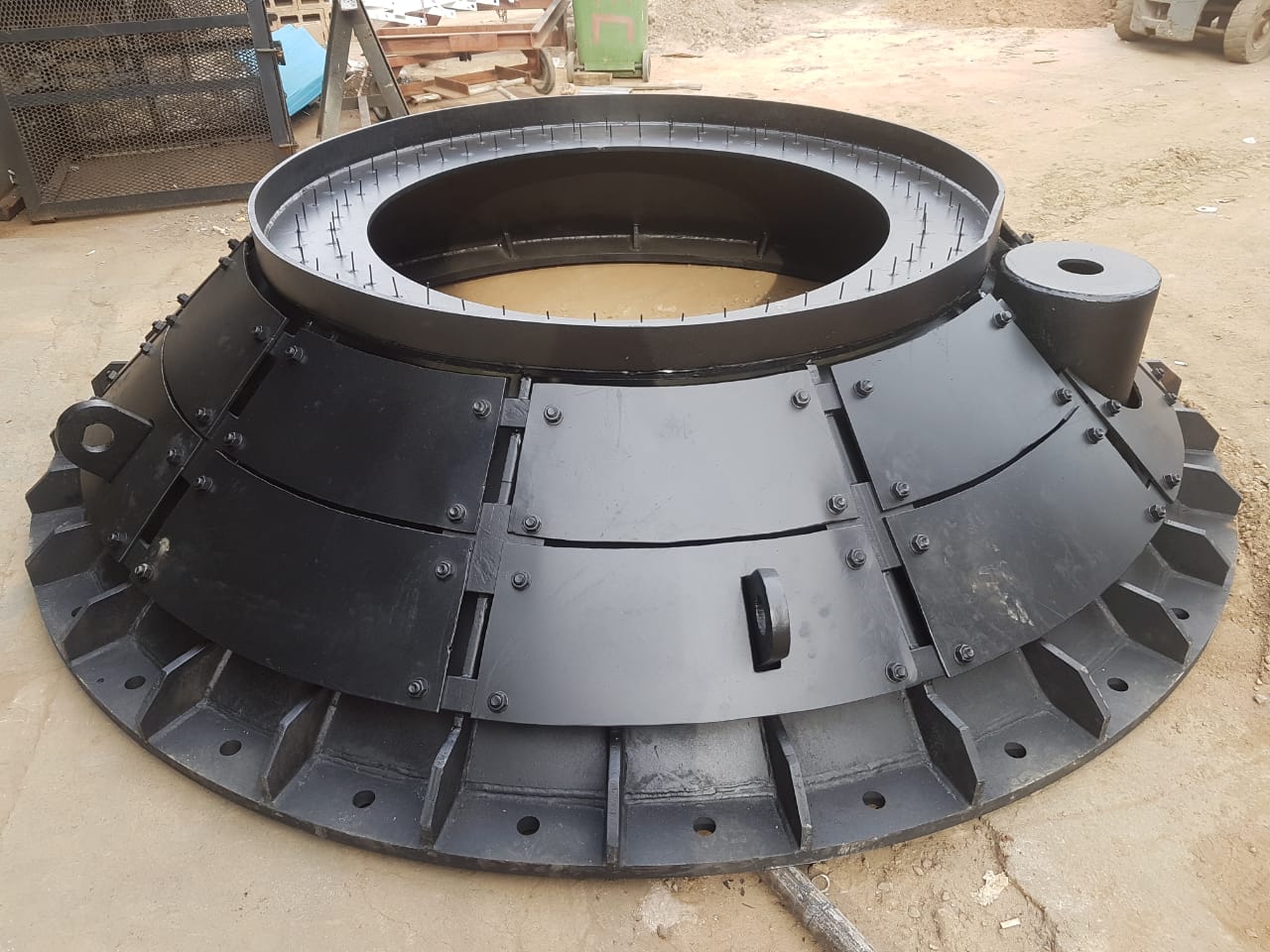

CONVERTER HEAT SHIELD HOOD – 2014 to CURRENT
This Project Included Manufacturing of Complete Converter Heat Shield Hood. We Manufacture & Supply as a Stock Item Between 4 to 5 Units Yearly
Projects Undertaken
SITE: TONGAAT HULETT SUGAR – MAIDSTONE MILL

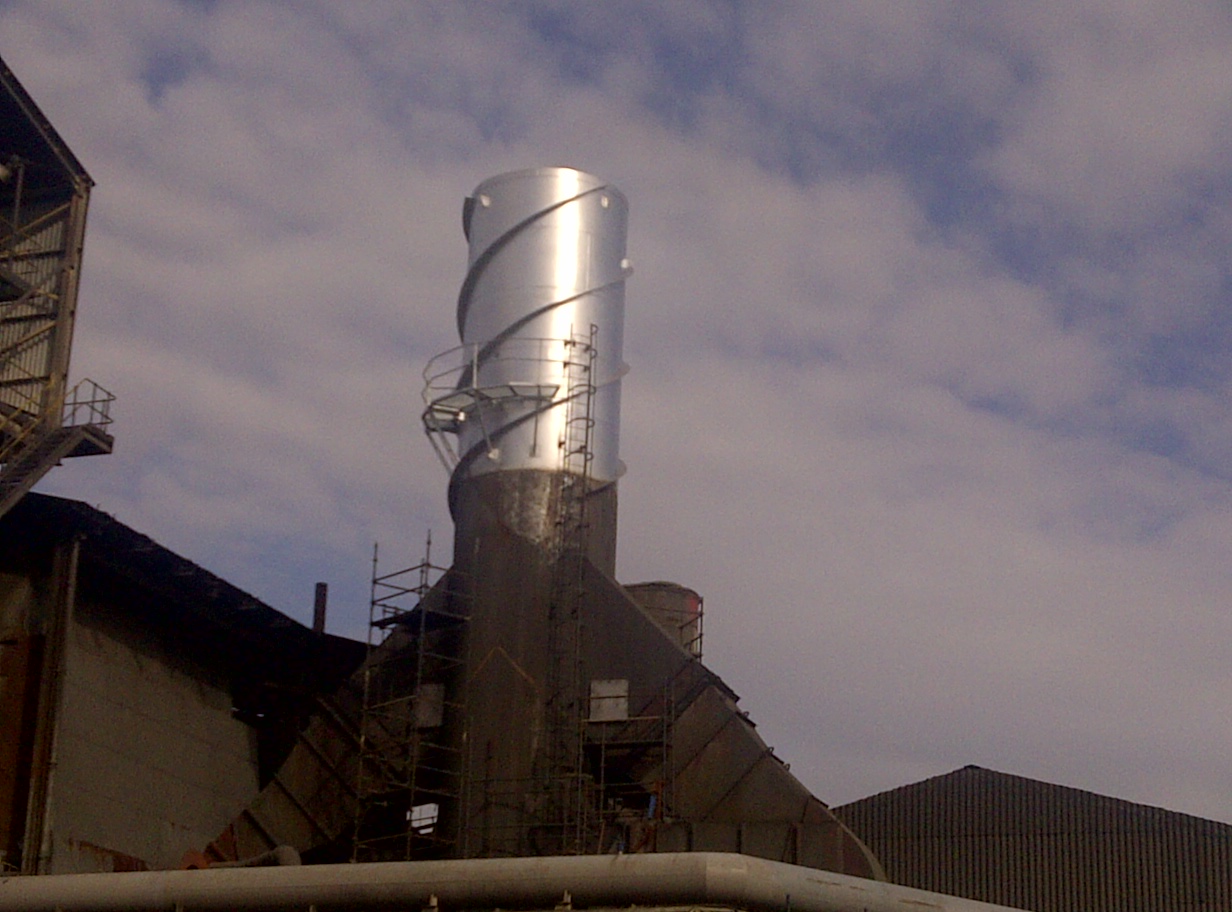

BOILER 5 SCRUBBER STACK – 2015
This project included manufacturing section of boiler stack, removal of existing and installation.
Projects Undertaken
SITE: TONGAAT HULETT SUGAR – MAIDSTONE MILL
C-CONTINOUS PAN VCP – 2015
This project included manufacturing of new VCP according Tongaat Hulett Engineering design. Removal of existing & Intsallation of New.
Projects Undertaken
SITE: ILLOVO SUGAR S.A (PTY) LIMITED – ESTON SUGAR MILL

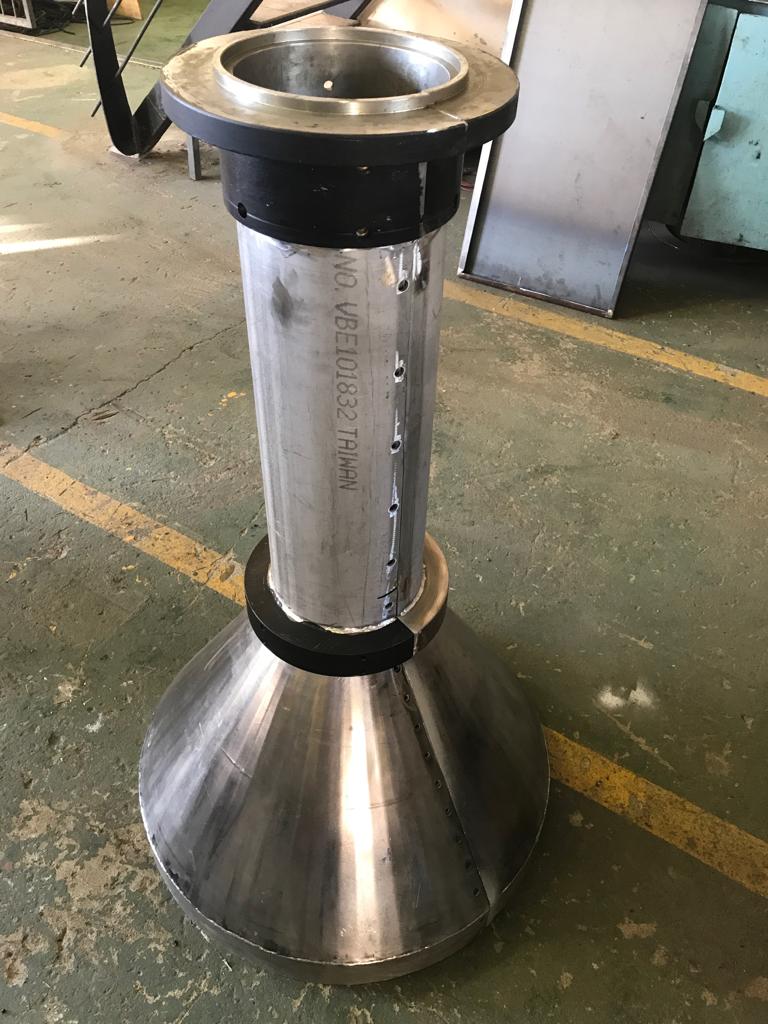

HENRY VALVE – 2015 TO CURRENT
This Project Included Manufacture & Supply Complete Henry Valve for Centrifugals. This is an on-going Stock Item Order
Projects Undertaken
SITE: ILLOVO SUGAR S.A (PTY) LIMITED – SEZELA MILL

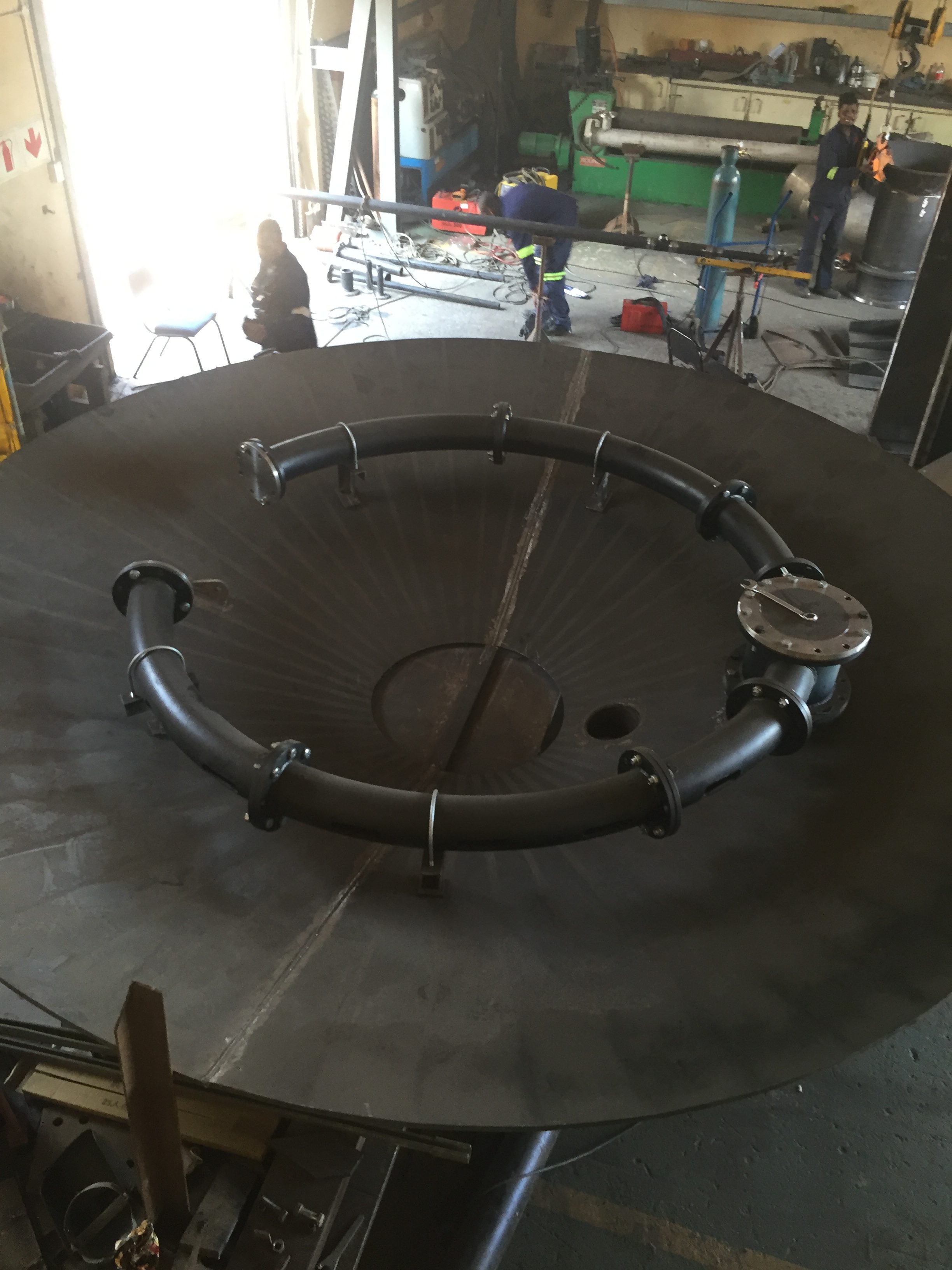

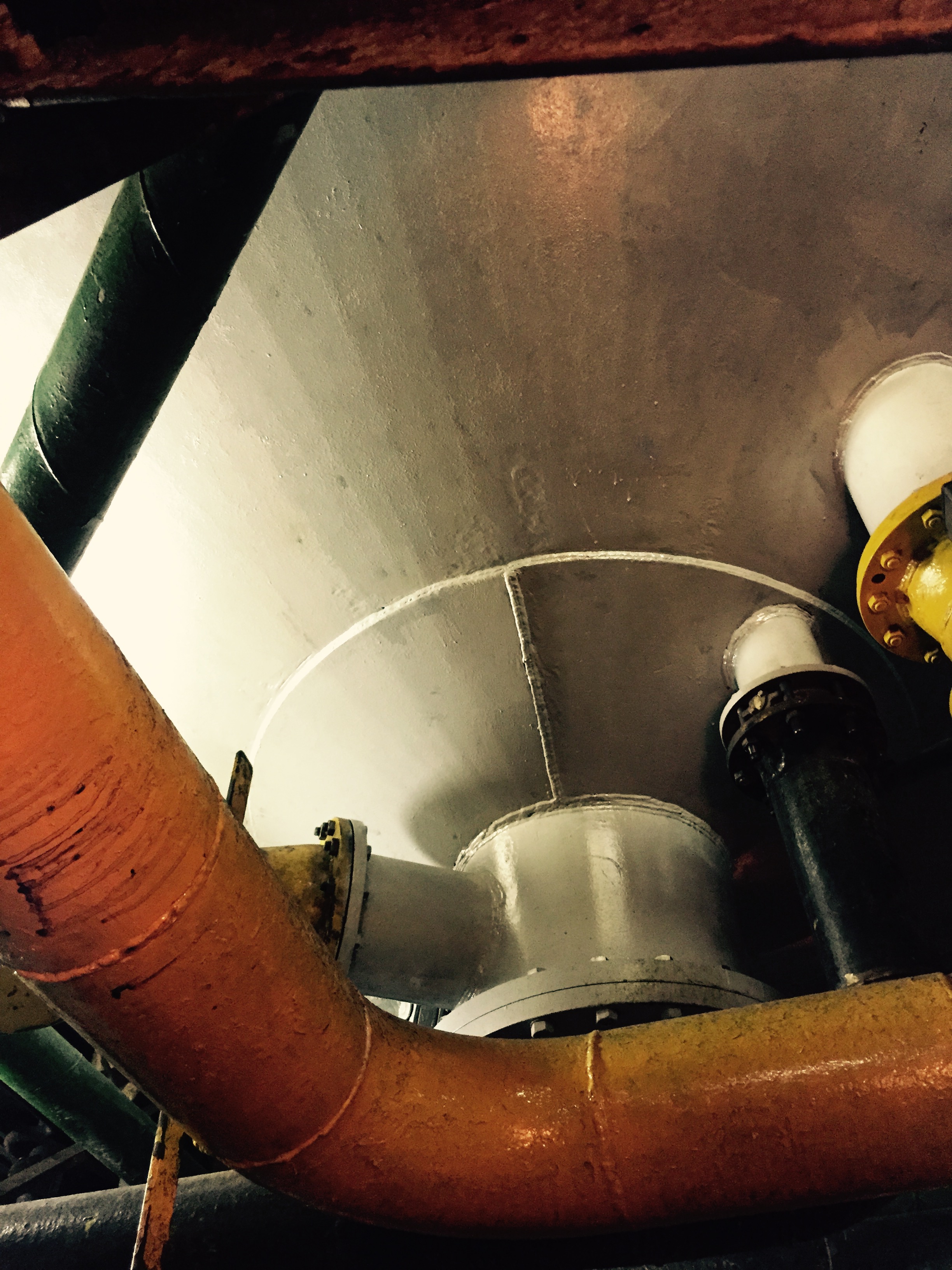

5B2 EVAPORATOR CALANDRIA & SHELL REPLACEMENT – 2016
This project included stripping, manufacturing and installing 2 Strakes of Shell Plate with Calandria, Downtake Pipe, Tube Plate & Saucer. Done in position due to restricted crane access utilising temporary ring beam supports
Projects Undertaken
SITE: ILLOVO SUGAR S.A (PTY) LIMITED – SEZELA MILL

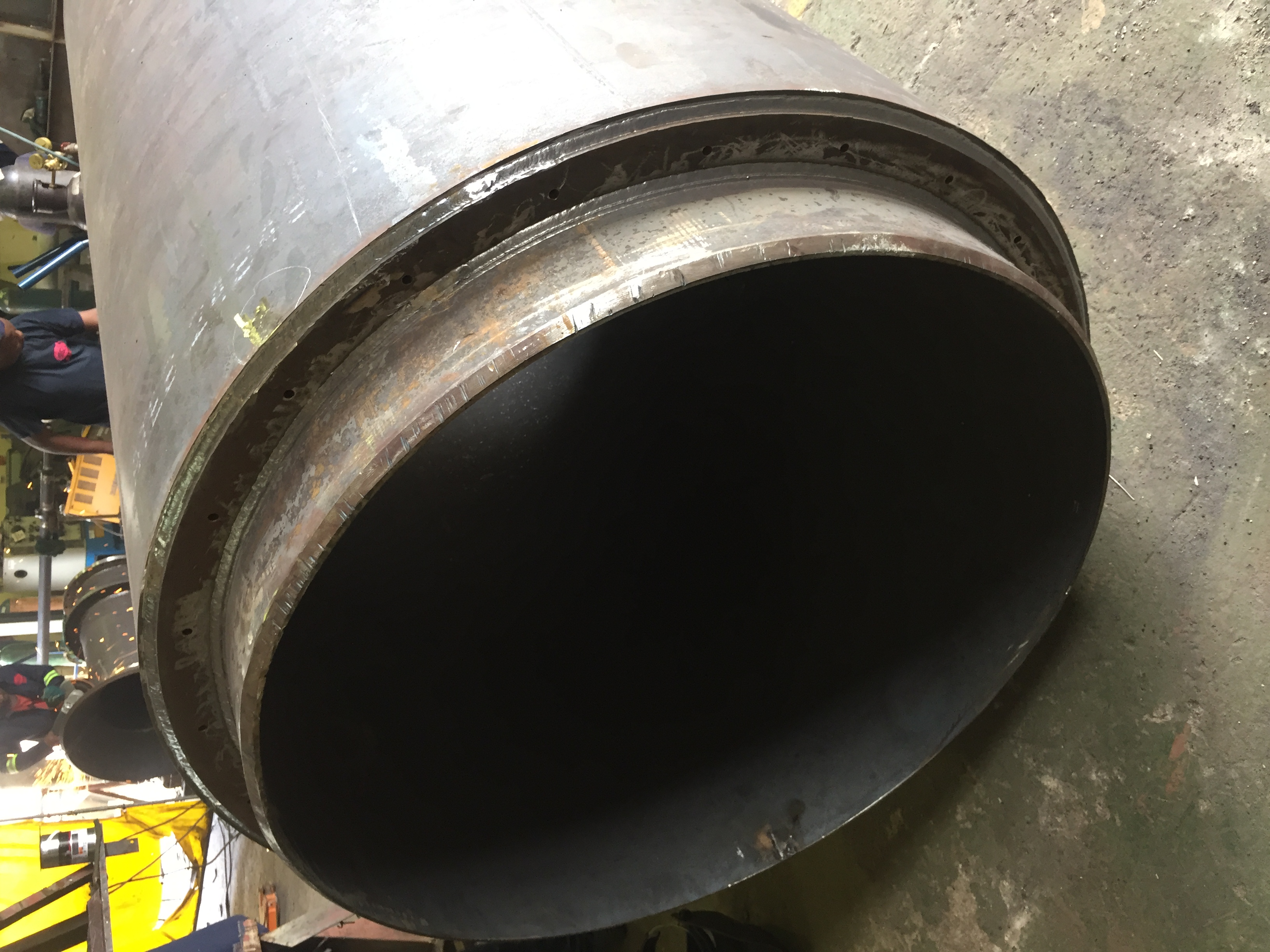

4A EVAPORATOR CALANDRIA & SHELL REPLACEMENT – 2017
This project included stripping, manufacturing and installing 2 Strakes of Shell Plate with Calandria, Downtake Pipe, Tube Plate & Saucer. Done in position due to restricted crane access utilising temporary ring beam supports
Projects Undertaken
SITE: ASSMANG MANGANESE – CATO RIDGE

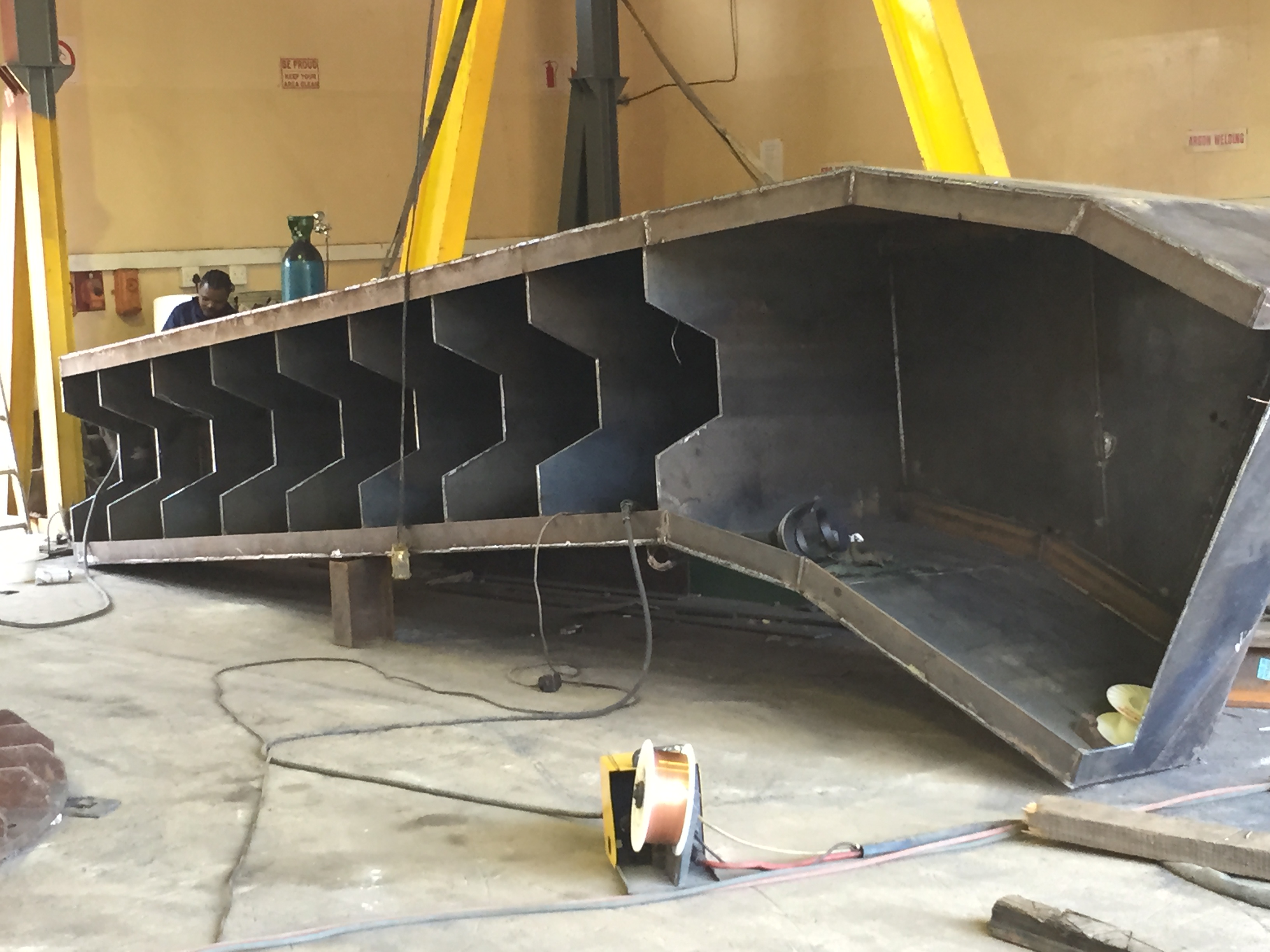

FURNACE LAUNDER – 2017
This Project Included Manufacturing of Complete Furnace Launder.
Projects Undertaken
SITE: ILLOVO SUGAR S.A (PTY) LIMITED – ESTON SUGAR MILL

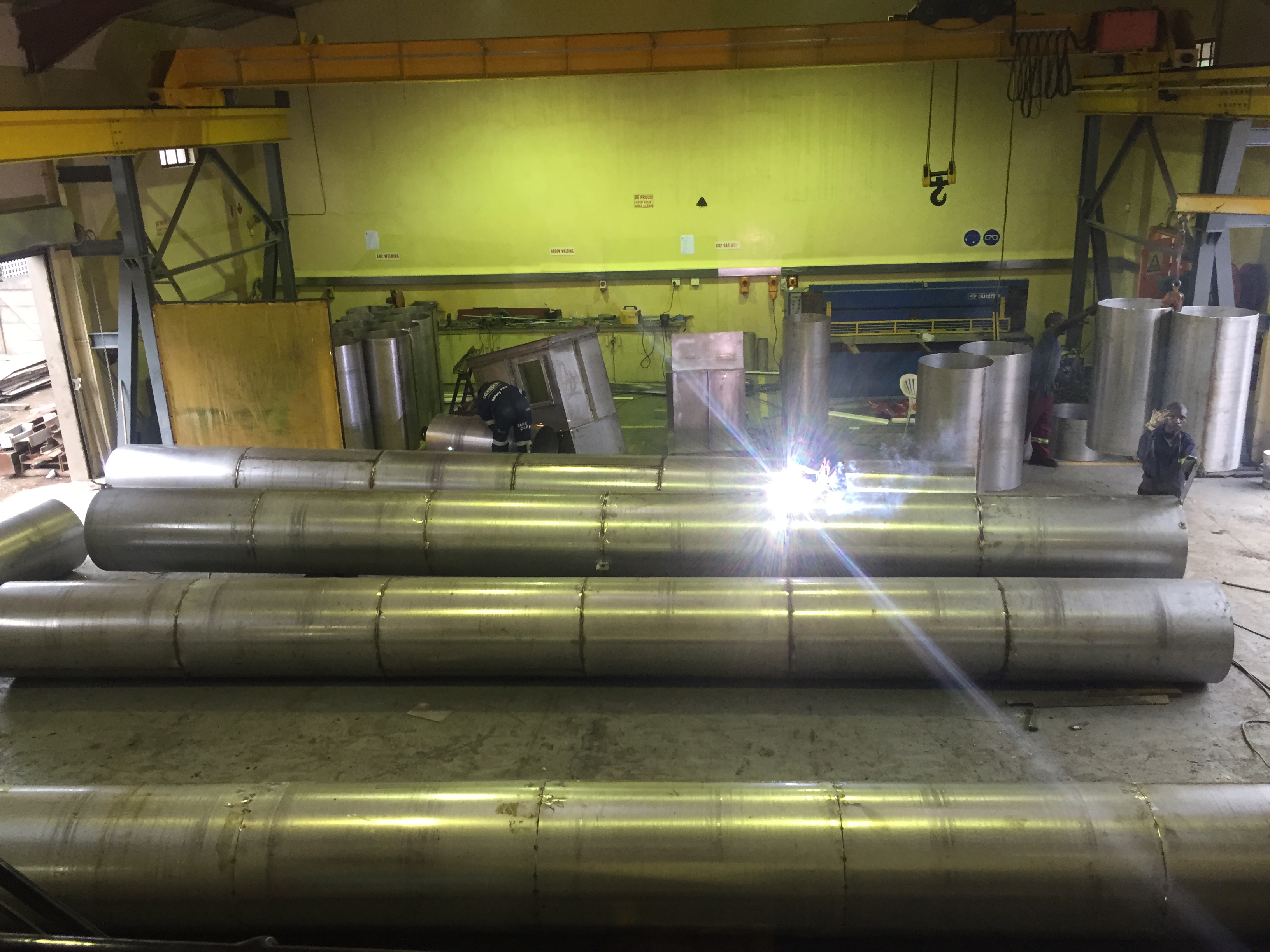

ICW PIPE REPLACEMENT – 2017 TO 2019
This project included excavation, manufacturing, removal & installing of ICW Piping. 600mm & 750mm Diameter 3CR12 Pipes. Total 120M Each.
Projects Undertaken
SITE: ILLOVO SUGAR S.A (PTY) LIMITED – SEZELA MILL
2B KESTNER EVAPORATOR CALANDRIA & SHELL REPLACEMENT – 2018
This project included stripping, manufacturing and installing 3 Strakes of Shell Plate with Calandria, Downtake Pipe & Tube Plate.
Projects Undertaken
SITE: ILLOVO SUGAR S.A (PTY) LIMITED – ESTON SUGAR MILL

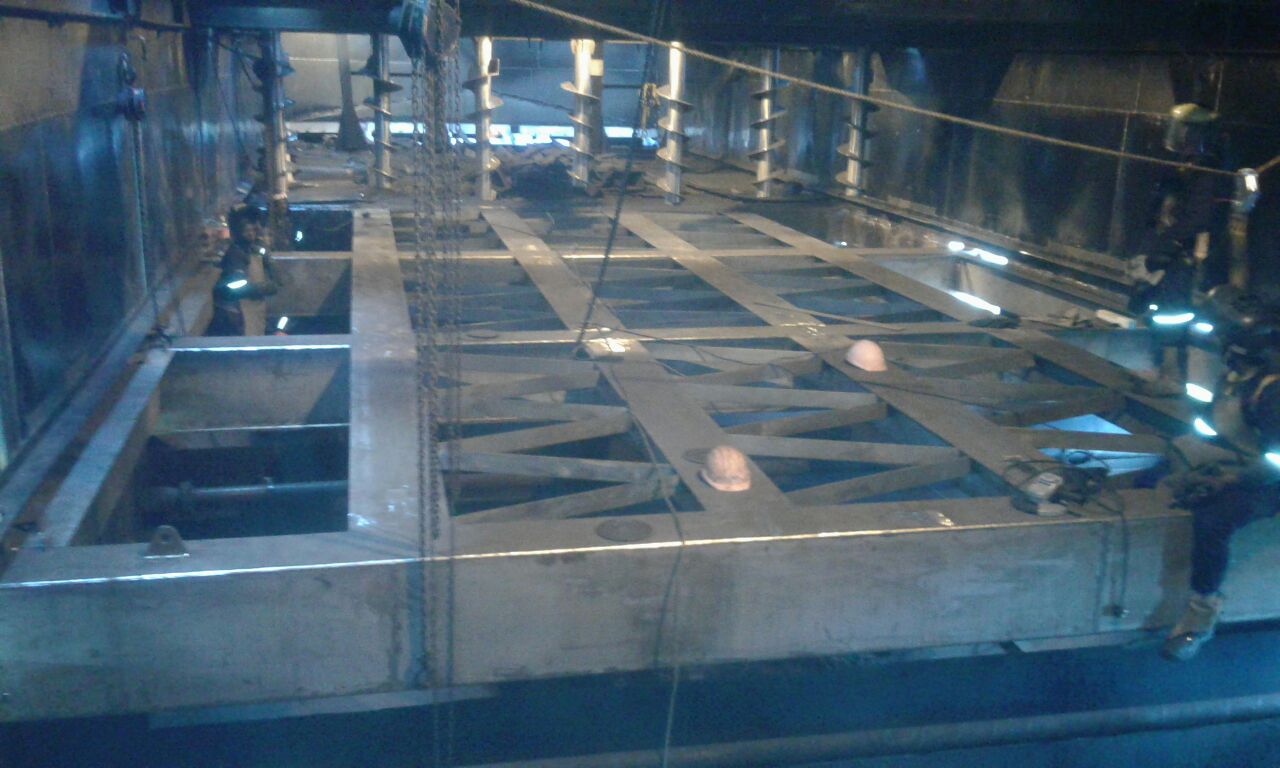

DIFFUSER BOX BEAMS – 2018
This Project Included Manufacturing of New 3cr12 Boxed Beams. Removal and Installation of Boxed Beams. This Project was carried out in different stages.
Projects Undertaken
SITE: TONGAAT HULETT SUGAR – MAIDSTONE MILL

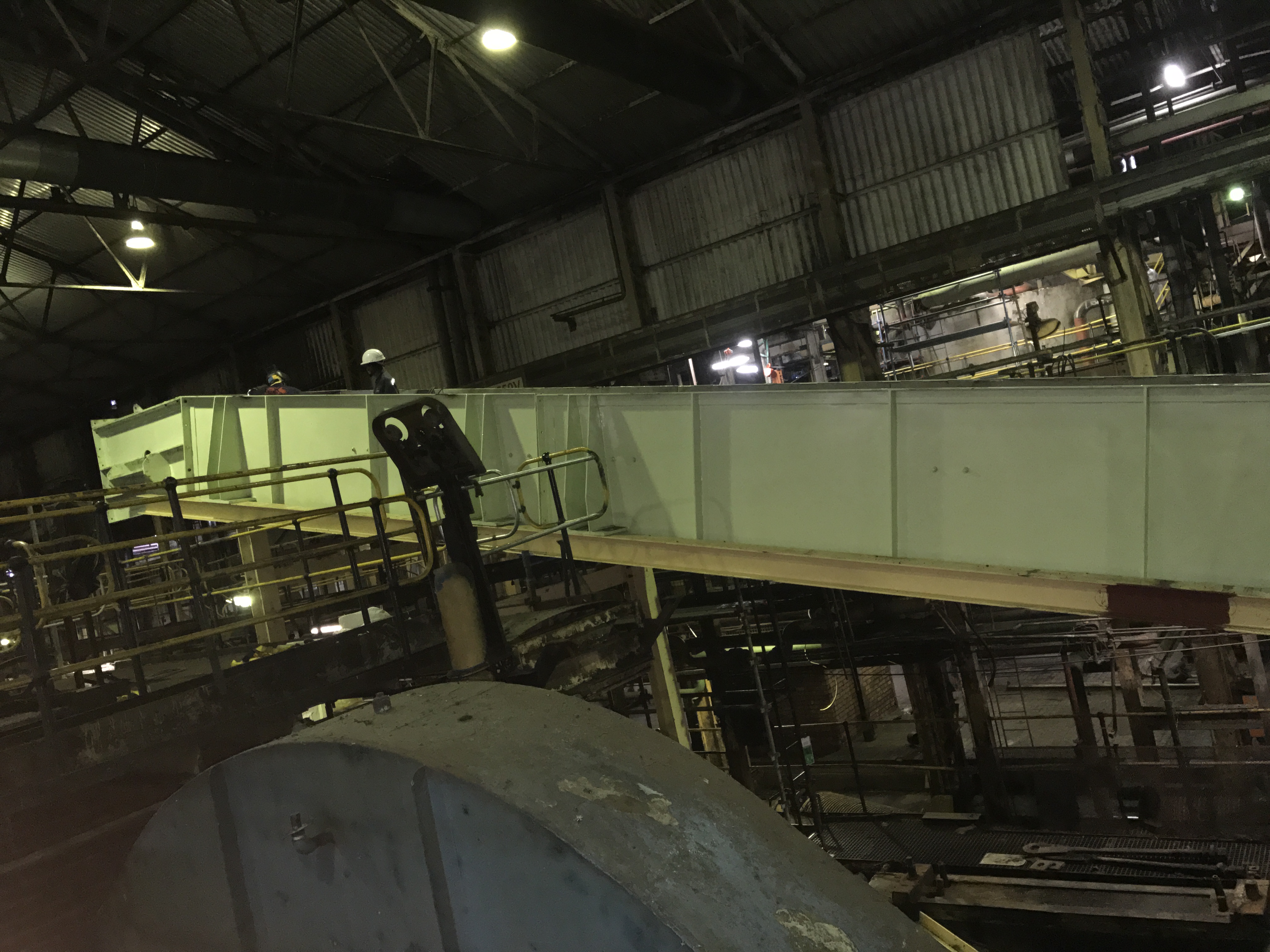

KM14 MILL CARRIERS – 2018
This project included manufacturing & Installing supporting structure & 3cr12 carriers.
Projects Undertaken
SITE: TONGAAT HULETT SUGAR – DARNALL MILL
3A/3B EVAPORATOR VCP INSTALLATION – 2018
This project included Manufacturing Complete 3cr12 VCP as per Tongaat Hulett Engineering Design. Removal of Existing Design & Installation of New VCP.
Projects Undertaken
SITE: ILLOVO SUGAR S.A (PTY) LIMITED – ESTON SUGAR MILL

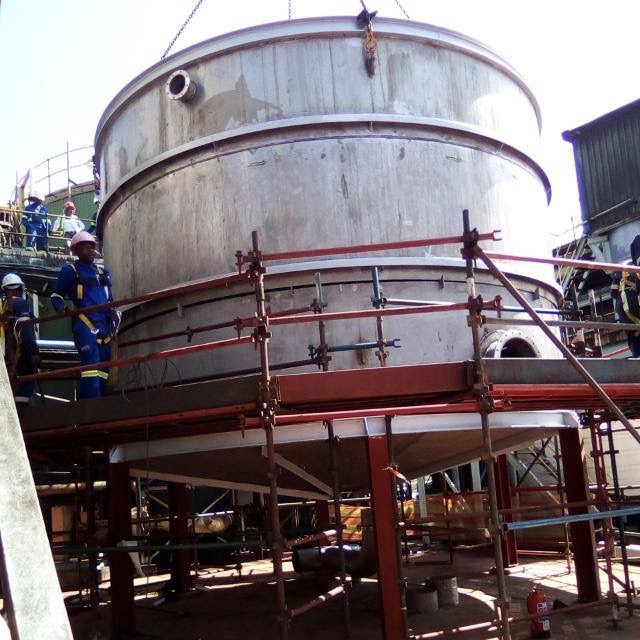

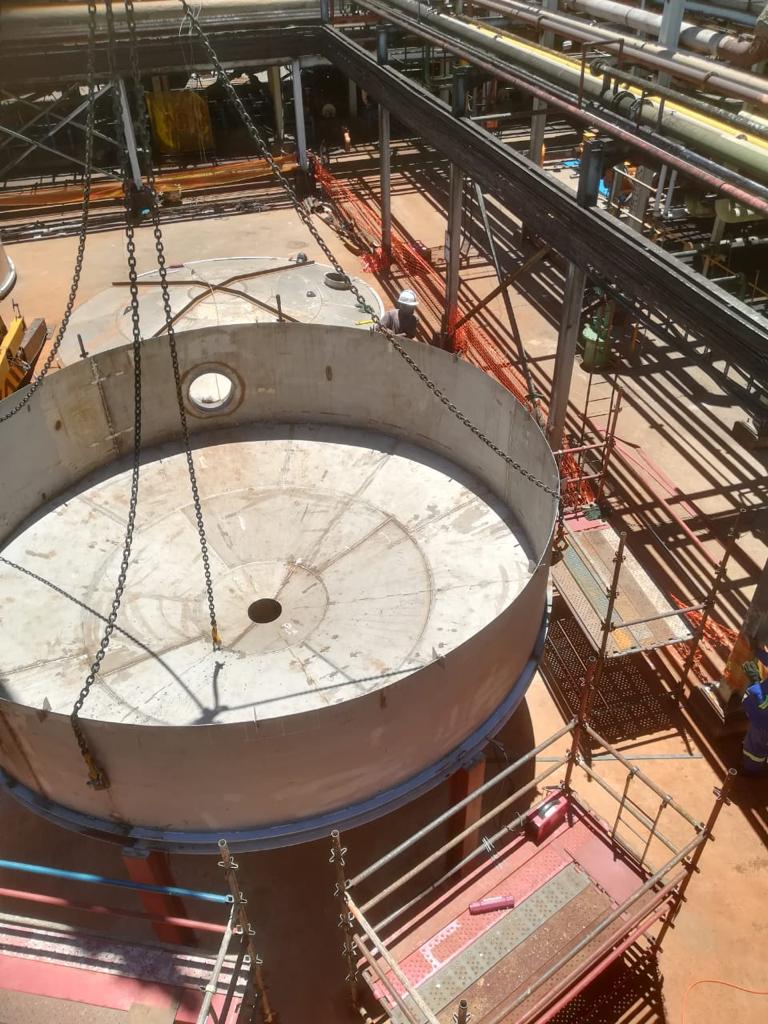

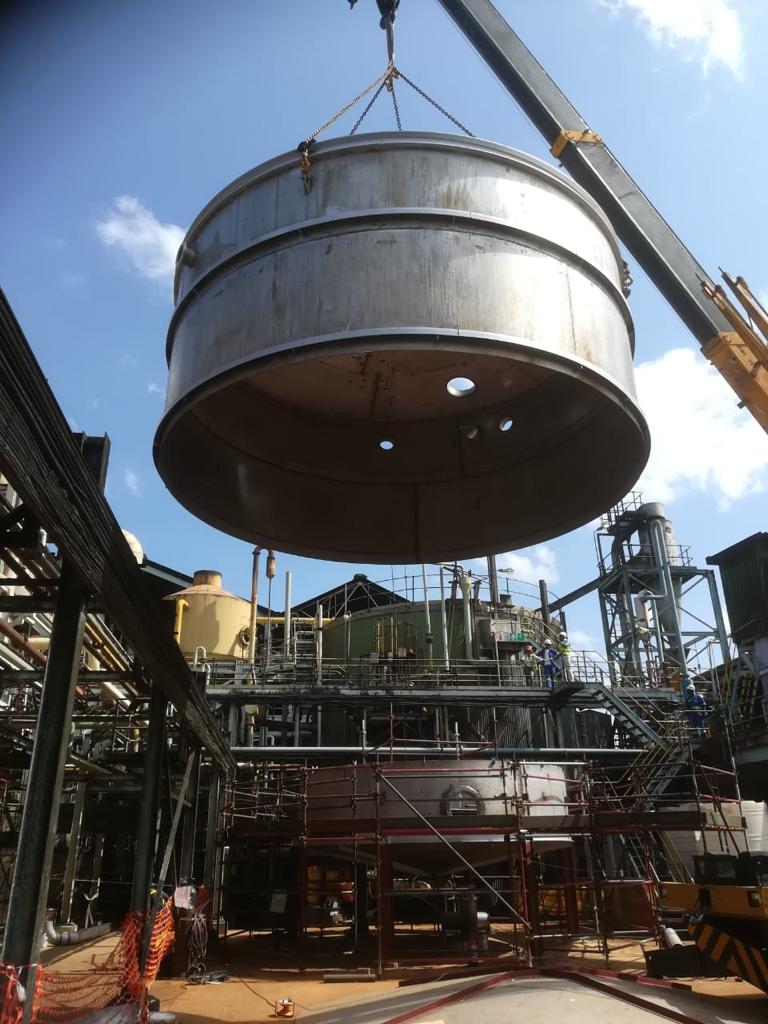

CLEAR JUICE TANK – 2018
This project included civil work, manufacturing & installing of clear juice tank and piping.
Projects Undertaken
SITE: TONGAAT HULETT SUGAR – MAIDSTONE MILL

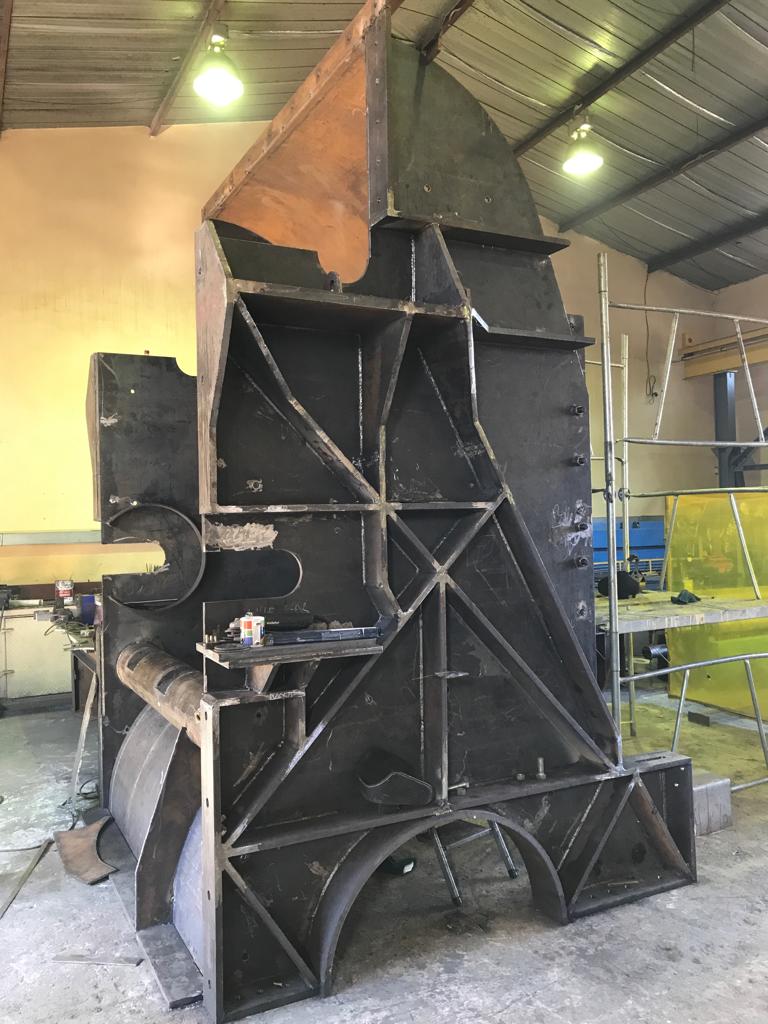

SHREDDER BOX – 2018
This project included Manufacturing & Installing Shredder Box with 3cr12 Liner Plates.
